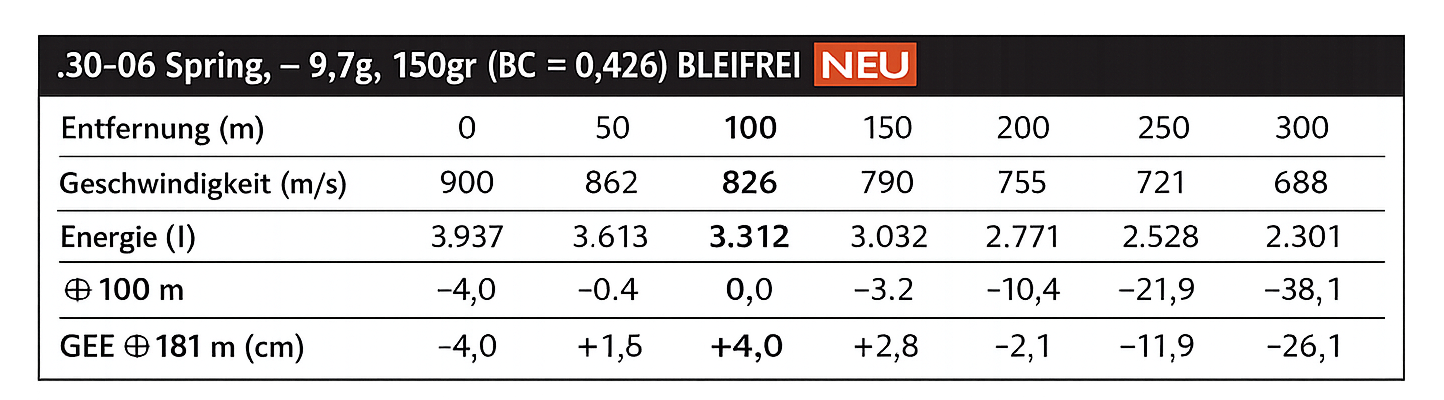

Ballistic Data

The following ballistic data refers to the selected variant with the stated configuration parameters.

Configuration parameters
Ballistic coefficient (BC)
0.426
Barrel length
600 mm
Projectile weight
9.7 g / 150 gr
Velocity over distance
Distance (m) Velocity (m/s)
0 860
50 823
100 788
150 753
200 719
250 686
300 654
Energy over distance
Distance (m) Energy (J)
0 3589
50 3289
100 3010
150 2751
200 2509
250 2283
300 2074
Point of impact correction
Fleckschuss
Distance (m) Fleckschuss 100 m
0 -4.4
50 -0.4
100 0.0
150 -3.6
200 -11.5
250 -24.1
300 -41.9
Optimal zeroing distance (GEE)
Distance (m) GEE 176 m
0 -4.4
50 +1.6
100 +4.0
150 +2.5
200 -3.4
250 -14.0
300 -29.8

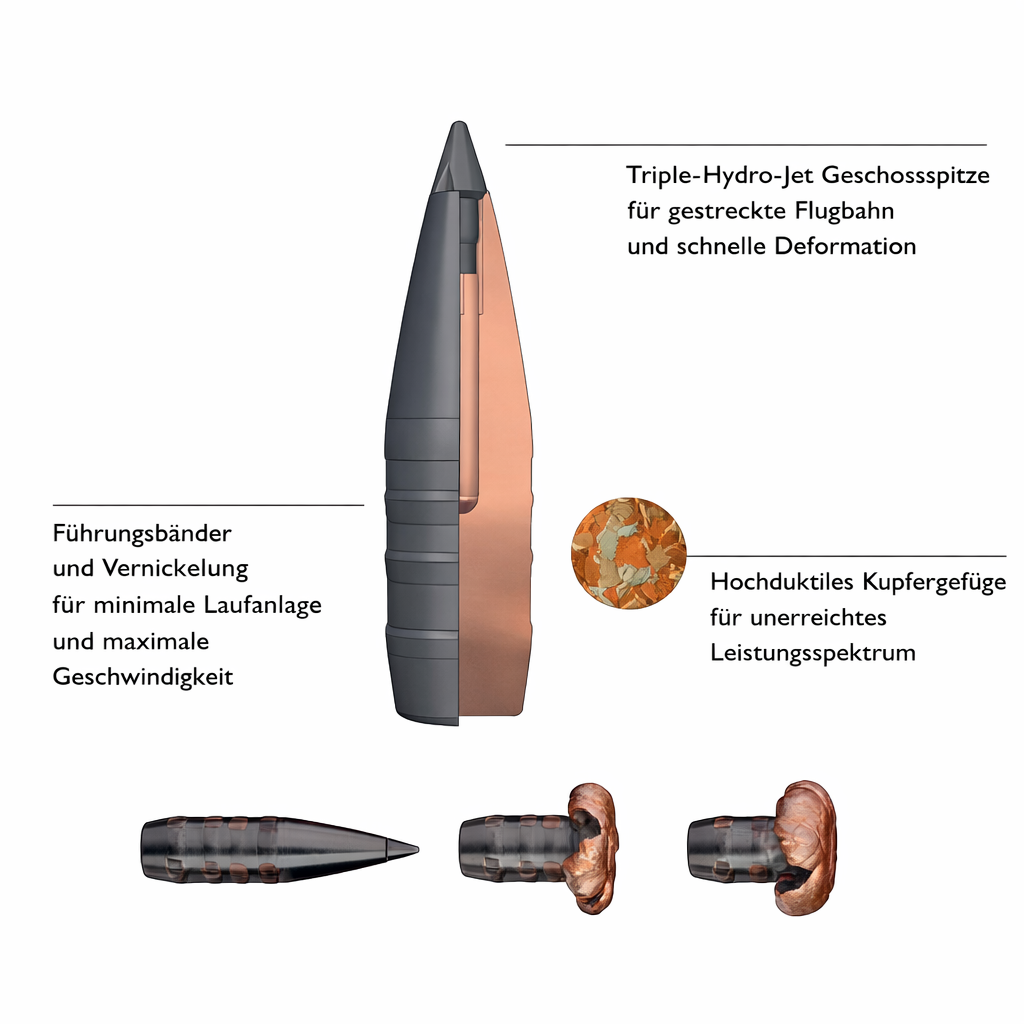

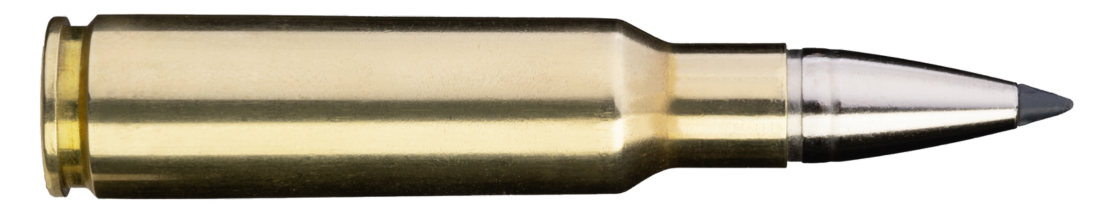

CDX – Copper Deformation Xtreme
Lead-Free performance based on the principle of lead-core bullets
The CDX combines high instant stopping power with pronounced penetration. Rapid expansion supports immediate performance in the game animal, while the bullet design simultaneously ensures the necessary penetration and a reliable exit wound. This creates a balanced combination of rapid effect and deep penetration.

Effective at all hunting ranges
The CDX expands rapidly to twice its original caliber diameter (factor 2), regardless of range or target resistance. Its degree of expansion remains constant over a wide velocity window. This is made possible by the unique bullet material, the precisely engineered construction and the Triple-Hydro-Jet-Tip. As a result, the bullet delivers consistent performance across different ranges and game weights.

Outstanding venison preservation without fragmentation
The lead-free, weight-retaining expanding bullet retains a high residual weight and does not release fragments into the venison. The retained bullet weight also ensures deep penetration and a reliable exit wound. The combination of weight retention and fragmentation-free expansion optimizes the condition of the venison and enables the best possible venison utilisation.
GHS01 hazard pictogram: exploding bomb
Hazard warning

Warning: danger from fire or fragments, blast and projection. Keep away from heat, hot surfaces, sparks, open flames and other ignition sources. No smoking. Always follow the information on the product label.
